Attach the right image or clip to a step

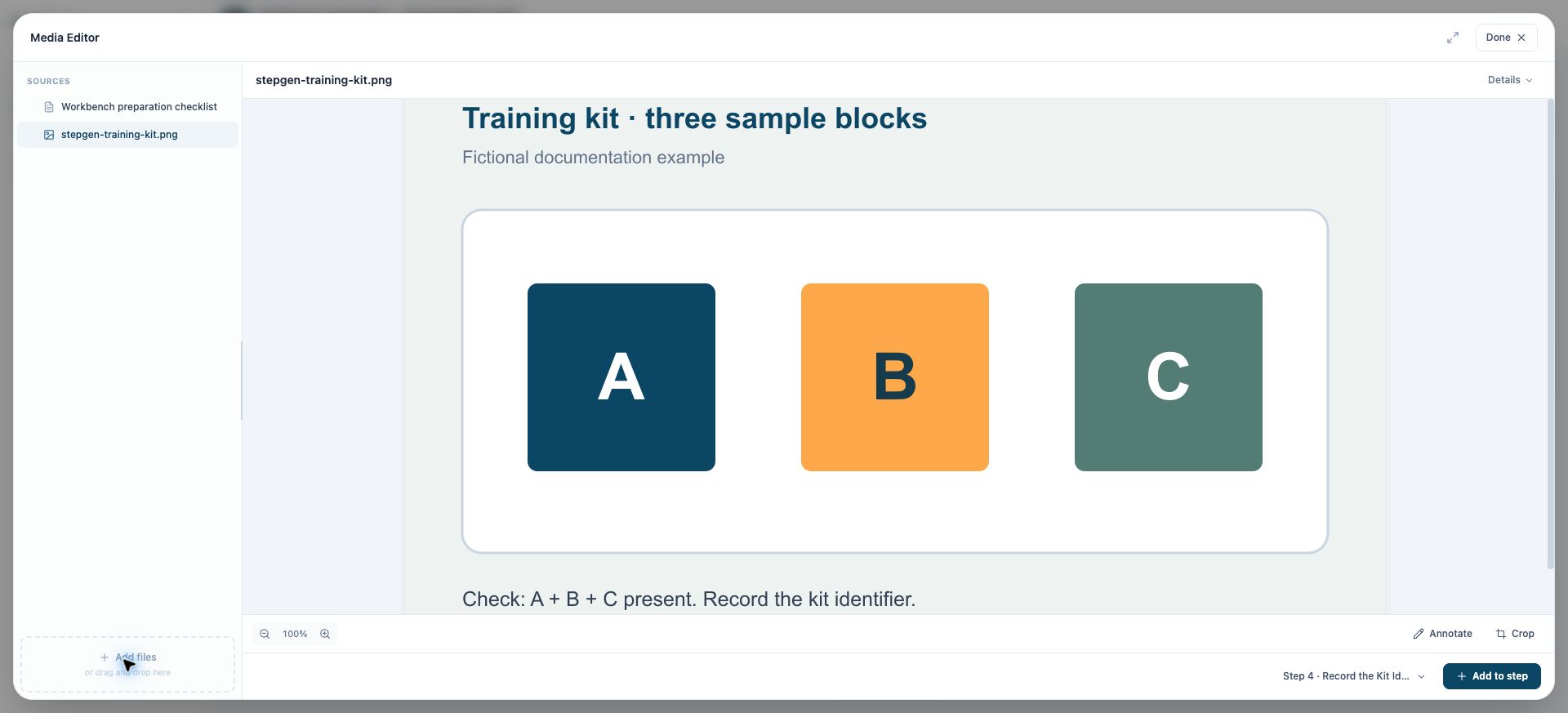

Open the Media Editor

1. 1

   Open Steps and choose Media, or open a step’s media controls.

2. 2

   Select a source or available image in the media library.

3. 3

   Use the viewer controls to inspect the image, PDF page, or video segment.

4. 4

   Check the destination step in the footer. Choose a different one if needed, then select Add to step.

Enlarge

The selected media and the destination step are separate choices. Check both before adding.

Choose the most useful view

• For PDFs, use the page or extracted detail that makes the action clear.
• For videos, find a frame or clip that shows the actual operation. Check the segment by playing it.
• For images, inspect small labels and component orientation before attaching.
• Use a close view for a small detail and enough context for the reader to identify its location.

Attach your own image

Open Media from Steps, or click the add-media tile in a step. In the Media Editor, choose Add files to upload an image. You can also drop a file onto a step’s media area.

After the image loads, check the destination step and choose Add to step. Preview the attachment and replace outdated or redundant visuals before sharing.

Check the instruction as a reader

1. 1

   Choose Done to return to Steps.

2. 2

   Confirm that the image is attached to the intended step and that text and image agree.

3. 3

   Open the preview and check readability.

4. 4

   Verify the final export or shared view, since the delivery format can present media differently.
